Lost Railways:
Metropolitan goods line

Balmain Road Junction to Darling Island.

Length: 4.1 km. Opened: 23 Jan 1922. Closed: 22 Jan 1996. Lifted
Darling Island to Darling Harbour. Length: 0.7 km. Opened: 22 Jan 1900. Closed: 6 June 1993. Lifted
Darling Harbour to Central Goods Junction Length: 1.7 km. Opened: 6 June 1993. Out of Use.

The Metropolitan goods line ran from Wardell Rd Junction to Darling Harbour passing through the suburbs of Dulwich Hill, Summer Hill, Lewisham, Haberfield, Leichhardt, Annandale, Glebe, Pyrmont as well as Darling Island, then under Pyrmont Bridge Road at Pyrmont Bridge to enter Darling Harbour and continue through to rejoin the Main lines near Mortuary Station. In its heyday it was the main route for coal, wheat and other goods into and from Rozelle Goods Yard as well. The Long Cove siding provided entry to and from the Australian Army Ordinance Stores located between the rail line and the Hawthorne Canal. In its heyday the double track Metropolitan Goods Line had up to forty train movements a day. The line was closed in January 1996, by which time it saw only weekly use to the Edwin Davey Flour Mill (adjacent to Metro Light Rail's Wentworth Park station).

During World War II the line was extremely busy with Troop and Ordinance trains making up the majority of the traffic. Troop trains headed towards Darling Island and the freight being carried was not always on display although aircraft (with wings made elsewhere) were often seen on wagons. The tracks are now in use again by Sydney Light Rail which runs a service from Central Station along the Western Goods Line from Darling Harbour to Lilyfield. Tracks of the disused Darling Harbour Goods line can still be seen behind the ABC Building in Harris Street, Ultimo.

History of the Line

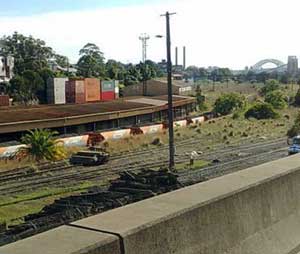

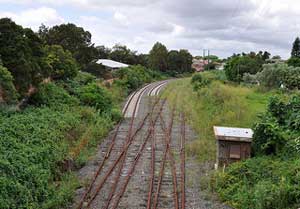

In the 1980s the Goods line from Balmain Rd Signal box to Darling Harbour, which was no longer in regular use, was closed to allow the building of the Sydney Casino. The line lay dormant for a time, used only by the Light rail as far as Wentworth Park. It was reopened as far as Catherine St Lilyfield on 13th August, 2000 for use by the Light Rail Network. During the 2000s the section between Dulwich Hill and Rozelle also saw a considerable decline in traffic. Rozelle goods yard became overgrown but was used intermittently for the storage of disused railway wagons and passenger cars. Eventually, the sole traffic was a service to deliver cereals to a flour mill at Summer Hill. In 2009 the mill relocated to Maldon in the Southern Highlands and all traffic on the line ceased. To adequately service the existing handling requirements of the Ports of White Bay and Glebe Island, a new connecting line runs along a corridor on the eastern boundary of the site, next to City West Link Road. In 2010 the NSW Government announced the extension of the light rail from Lillyfield to Dulwich Hill utilising disused lines within the corridor.

By 1900 the Sydney metropolitan railway network was fast reaching congestion through the combined, and conflicting, demands of the suburban and country passenger services and the movements of freight trains. Segregated running periods and special timetables were only short-term solutions and did not address the differing traffic requirements. The decision was made to build a separate rail system for freight trains so they could move independently of the passenger services but could link into the four main lines (north, west, south and Illawarra) at specific locations. Also, a large marshalling yard would be built in the middle of the goods line network (at Enfield) to centralise the interchange of freight traffic.

The completion of the goods line was directly associated with the Sydney Harbour Trust's completion of the Pyrmont (Jones Bay) wharves, which were considered the most up-to-date and advanced in the port, with rail lines running along each of the wharves. The goods line provided a continuous loop connection through Central Station Yard, Darling Harbour Goods Yard and the Pyrmont wharves, with connections to Rozelle Yard, White Bay and Glebe Island. In this period, Sydney Harbour was the main port for NSW and the goods line provided a direct connection between rural Australia, growing wheat and wool and mining coal, and the ships carrying the goods to export markets. Imported goods arriving on the docks were back-loaded onto the empty trains for distribution around the state. Work began around 1910 with the goods line from Rozelle to the northern end of Darling Harbour completed and opened for traffic on 23 January 1922.

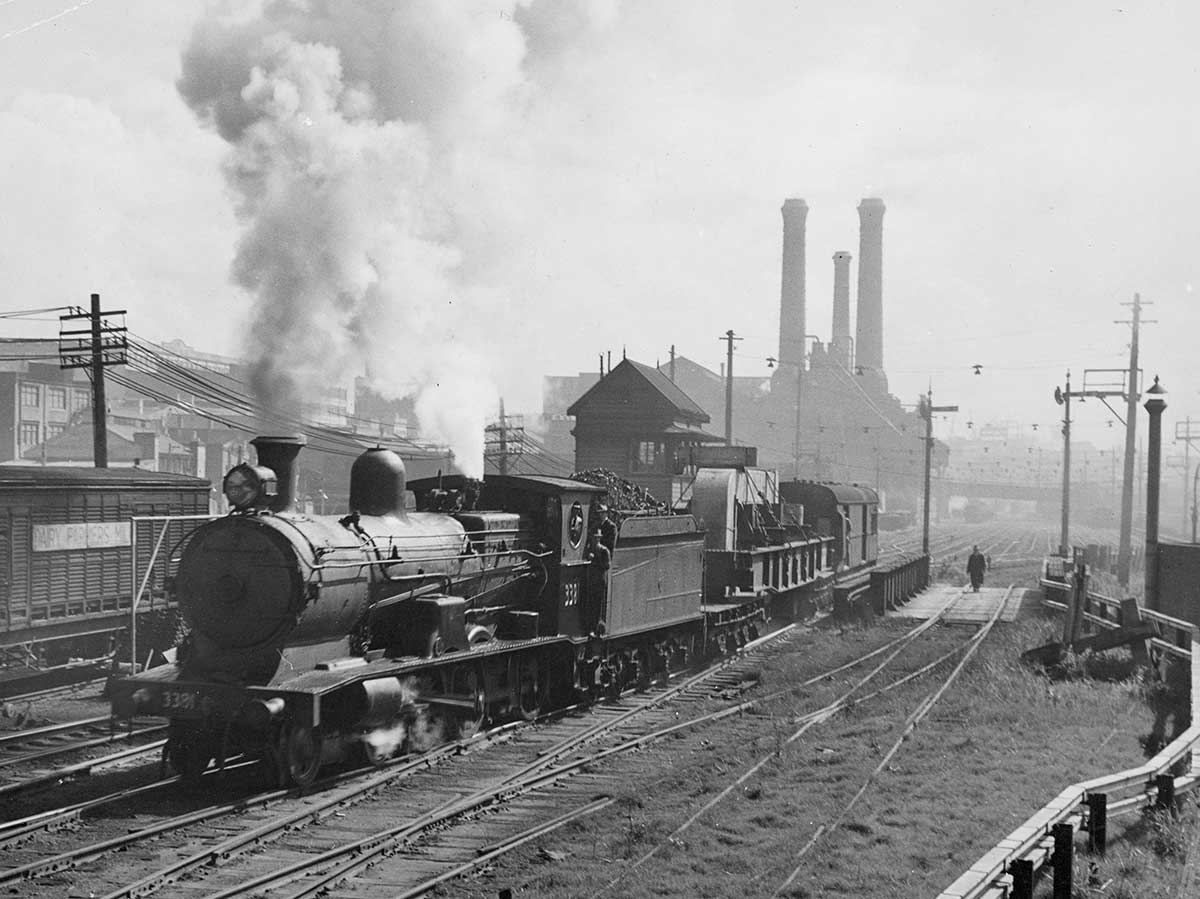

A goods train passes over the Ultimo Street underbridge

Goods Line Bridges

Between Darling Harbour and Rozelle, a series of underbridges, viaducts and tunnels were constructed to carry the line through the suburban landscape. The construction of brick arch underbridges occurred in two periods: 1892 for the duplication of the line from Granville to Picton, then from 1914 to 1922 mostly for main line duplications. The former had bricks supplied from private brickworks whereas the latter's supply came from the State Brickworks at Homebush. At the time of the goods line project, railway bridge engineers had standardised the span-ranges for the three most common types of riveted steel bridges to be used in NSW: plate-web girder spans from 40 to 80 feet (12 to 24m), half-through truss spans with no overhead bracing from 80 to 120 feet (24 - 37m), and full-height trusses with overhead bracing for spans 120 feet or more. The widths of streets crossed by the goods line were such that only plate-web girders and half-through trusses were necessary. The bridges were all designed for loads much greater than contemporary use so as to be long-serving structures as rail traffic loads and speeds increased over time.

The railway bridge at Railway Street, Annandale, is an example of a modified, riveted-steel Pratt half-through truss design bridge. The Pratt truss design was preferred for railways use in NSW after 1892, with riveted-steel construction for railway bridges becoming the standard from this time. Nearly all the underbridges - a mix of brick arches, steel girders and steel trusses - are still in use by the light rail service through the area.

In 1919 the NSW Government Railway built the first reinforced concrete railway bridge on its system over the northern end of Bellevue Street, Glebe. The experimental single span was restricted to 6.5 metres in length and supported the goods line from Rozelle to Darling Harbour which was being built at the time.

The Cooks River Underbridge at Canterbury is part of the original infrastructure for the Metropolitan Goods Line. It is the longest span brick arch rail viaduct within the NSW rail network, with clear spans of 16.16m between piers. The section of the Metropolitan goods line which passes over the bridge is largely as originally built and is still serving its design function. Though the Darling Harbour Goods Yard has been abandoned and the site redeveloped, the Enfield Yard has been completely rebuilt to suit modern traffic operations.


Glebe Railway Viaduct

Glebe Railway Viaducts

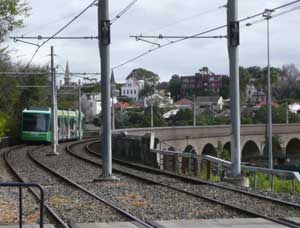

The two brick and stone viaducts on the Western Goods Line, both elegant structures built on a curve with well detailed arches, were built across Wentworth Park and Jubilee Park in 1919. Stretching approximately 446.5 metres, the 28-span Jubilee Park viaduct is the longest section of brick arch viaduct on the NSW system and the largest viaduct structure to survive in Australia. The arches are evenly spaced, being 28 x 10.06m (33 feet) clear spans. The Wentworth Park viaduct consists of a long, curved brick arch viaduct of 11 x 10.97m (36 feet) clear spans and 10 x 11.58m (38 feet) clear spans. The viaduct is estimated to contain 1.4 million bricks and stretches approximately 274 metres across the park, making it the second longest brick viaduct in the NSW system after the Jubilee Park viaduct which is part of the same line.

They are a major engineering work, as they were built using timber piles driven into the ground below them, to shore up the structures, as both parks through which they pass had been themselves created on land resumed from swamps and sandflats. The viaducts constitute one of the first major infrastructure projects to use bricks from the State Brickworks at Homebush, with more than 3 million bricks used in their construction. The bricks are laid in English bond pattern with soldier courses defining the archways, which are are evenly spaced.

Glebe Road and John Street Railway Tunnels

The Glebe and Pyrmont tunnels, now used by Sydney's Light Rail, are important relics of the inner city rail freight system, having remained virtually intact as the line was never electrified. The double track tunnels and associated cuttings were created in 1919 as part of the Western Goods Line between Darling Island and Balmain Road Jctn. The 4.1 km long section of track which passes through them was opened on 23rd January 1922 and closed to goods rail traffic 74 years later to the day. The John Street Tunnel was built, opened and closed for traffic simultaneous to the Glebe Road tunnel. A curved brick-lined 123.8 metre long tunnel, its takes the line under the sandstone heart of the Pyrmont peninsula.

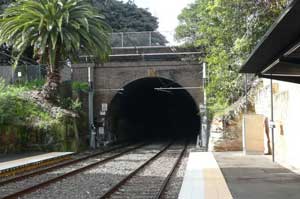

The brick-lined Glebe Road tunnel is 744.8 m long and runs from Pyrmont Bridge Road to Jubilee Park, passing below Glebe Point Road. The western portal is adjacent to the former Rozelle Tram Depot. Both portals now frame Metro Light Rail's Glebe and Jubilee Park Stations. The line's corridor lay dormant until it was brought back into use by Metro Light Rai which operates a service to Lilyfield using the goods line's tracks, viaducts, bridges and tunnels. John Street Station was created within the cutting beyond the eastern portal of the John Street Tunnel.


The Darling Island Goods Line tunnel has been extended considerably over the years to many times its original length. The stonework for the original arch is visible in this photograph.

Darling Island Goods Line
The Darling Harbour goods line was part of the first railway opened in New South Wales in 1855, the current corridor corresponds with that purchased from the Harris family in 1853 for this purpose. It therefore has a high degree of significance as a place. The Ultimo Road Bridge is believed to be constructed in the 1850s, and is therefore one of the only remaining features of the original railway which joined Darling Harbour and Granville (Parramatta Junction) in 1855.

The siting of the railway along what was the edge of Darling Harbour strongly influenced the development of Pyrmont and Ultimo. Because of it, wool stores, engineering works and other industries were built here after the 1870s, giving this part of Ultimo its industrial, rather than residential, flavour. The site also contains two railway bridges. The Railway Square road overbridge (outside the curtilage of this listing) built in 1855 is historically significant as the oldest railway bridge to be constructed and still in use in New South Wales. It is a strong connection to the first railway construction and the original Redfern (Sydney) Station. The Ultimo railway underbridge is a mid 19th century construction with classic revival inspired cast iron columns and mid 19th century sandstock brick abutments. Both items are assessed individually as historically rare, scientifically rare, archaeologically rare and socially rare.


Darling Island Goods Yard, 1950s

Darling Harbour Goods Yard

Darling Island goods yard, on the western side of Darling Harbour, could be accessed from the parcels office and post office that once existed near Central station via a line that still exists. It passes under Broadway and Lee Street via a tunnel, emerging in the abandoned railway corridor parallel to Harris Street, Ultimo, behind the ABC building. The monorail once travelled along this corridor, joining it at the end of Macarthur Street. The Darling Island Jctn. signal box appears briefly in the movie, Strictly Ballroom, being used as the home of the parents of the girl who danced with Paul Mecurio. A '49' class Loco appeared briefly in front of the house. The signal box was located where the buses stop at Star City Casino today. Once the light rail leaves the Casino stop and proceeds into the cutting it is travelling on the alignment of the No. 1 siding of the Pyrmont Power House storage sidings.

Darling Harbour itself was known before the 1830s as Cockle Bay due to the extensive Aboriginal shell middens on its shores, so it is more than likely that the site of the Darklingoods yard was at least intermittently visited or occupied by Aboriginal people in the course of gathering food or making camps. European occupation began in the 1790s when much of the land in the Pyrmont/ Ultimo peninsula was granted to members of the military. By 1804 John Harris had consolidated much of these holdings into the Ultimo Estate, Governor King had granted this part of the Ultimo Estate to Harris in December 1803. In 1830-31 a strip of land along the north side of George Street was sold as town allotments, with buildings indicated to the east of the subject site by 1836.

The land was sold in 1853 to the Sydney Railway Company, however, like most international private railway companies, the it fell into financial difficulties and was taken over by the NSW Government in 1854. The railway, ultimately connecting Darling Harbour and Parramatta, was opened in 1855. The railway reserve of 1853 follows the current corridor and extended almost to Pyrmont Bridge. A series of cuttings and embankments carried the railway from the Redfern terminus (near Central). At George Street (Broadway) a sandstone bridge, still in existence, carried the street over the railway cutting. The cutting for the railway here obliterated evidence of any structures that fronted George Street. At Ultimo Road, the northern boundary of the area under study, a bridge carried the railway over the road. Little development occurred in the period of almost 20 years following the opening of the railway. The line divided the peninsula, largely alienating the Darling Harbour shoreline strip of land from Harris Street, a factor which was to influence the development of Ultimo and is still strongly evident today.


Entrance to the railway tunnel under George Street, Broadway

Pyrmont Bridge opened in 1857, and it was intended that there should be a rail and bridge interchange or terminus, so that goods could be brought across the Bridge from Sydney (and indeed the Darling Harbour wharves) and thence transported by rail, and vice-versa. The Government's reclamation of the southern end of Darling Harbour led to the construction, in 1874, of the Iron Wharf. This was the first substantial wharfage on the western side of the Harbour and was conveniently located close to the railway to enable its use. The Ultimo Power House was built in 1898-99 on the railway line by which it was supplied with coal, as was the Pyrmont Power Station some ten years later. Following the Government resumptions after 1901 and subsequent wharfage developments at Jones Bay and Darling Island, the railway expanded and fostered the industrial boom first predicted in the 1850s.


Steam locomotive 3801 on what was the last remaining line of track at Darling Harbour during the 1988 Bicentennial celebrations

By the 1910s Darling Harbour south of Pyrmont Bridge was becoming too shallow for large vessels and was largely reclaimed in the late 1920s using fill from Sydney's underground railway excavation. The Iron Wharf was demolished and operations concentrated further to the north. By this time the goods yards had been built. By the 1960s many of the nearby woolstores and other port functions were moving out of Sydney. Road transport was often a less expensive medium than rail for transhipment of goods. The functions of the railway decreased significantly. Finally in the 1980s the Darling Harbour Redevelopment spelt out the final chapter of the Darling Harbour goods yards, which were demolished and redeveloped in 1985-88. Trains have not generally used the Ultimo railway line since the 1980s with the exception of occasional use to bring steam trains to the siding at the PowerHouse Museum. In the 1990s the line north of Hay Street was utilised for the light railway through Pyrmont, accessed from Hay Street, and thus continuing the traditional use of this corridor.
